Popis produktu:

Popis

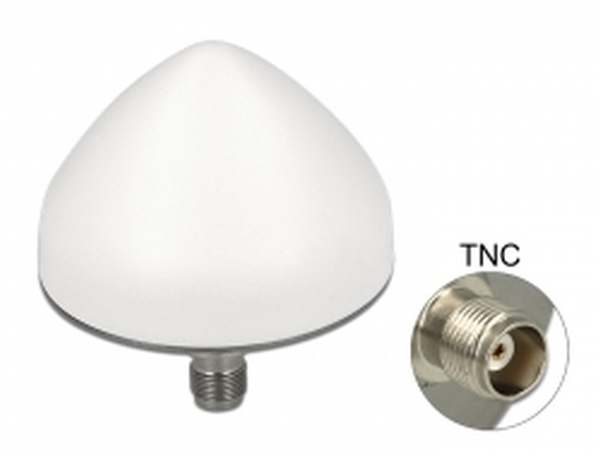

This antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS and GALILEO satellite signals at the same time.

Specifikace
• Connector:
  1 x TNC jack
• GNSS:
    Frequency range:
        Galileo: L1 1,5754200 GHz
        GPS: L1, 1.5754200 GHz
        GLONASS: L1, 1.6025625 - 1.6155000 GHz
    Antenna Gain: 4 dBic
    VSWR: 1.5
    Impedance: 50 Ohm
    Polarisation: RHCP
• LNA:
    Frequency range:
        Galileo: L1, 1,5754200 GHz
        GPS: L1, 1.5754200 GHz
        GLONASS: L1, 1.6025625 - 1.6155000 GHz

   Operating voltage: 2.7 V - 10.0 V

   Gain: 40 dB

   Impedance: 50 Ohm

   Current consumption: 25 mA

   VSWR: 2.0


• Mounting type: screw mounting

• Housing colour: white

• Housing material: ABS

• Protection class: IP67

• Suitable for outdoor: yes

• Operating temperature: -40 °C ~ 85 °C

• Diameter: 66.5 mm

• Height: 46 mm

• Thread type: M18
• Surge protection: 15 kV


Obsah balení

• GNSS Antenne

• Gummidichtung
• Unterlegscheiben
• 2 x Muttern


Balení
• Box
