Popis produktu:

Platimax D. F. je nástupcem oceňované série Platimax. Série PSU s certifikací 80Plus Platinum je vybavena patentovanou technologií DFR ™ (rotace bez prachu), která zabraňuje akumulaci prachu a poskytuje čistší a dlouhodobější zdroj energie. Všechny modely mají funkci ventilátoru bez ventilátoru a 139mm ventilátor Twister Bearing, který udržuje úroveň hluku na minimu. Plně modulární jednotka PSU je dodávána s jednotlivě rukojetovými kabely (SLEEMAX ™), které nabízejí další ochranu a nejvyšší flexibilitu pro instalaci systému. Toto high-end PSU je perfektní řešení pro herní systémy a grafické pracovní stanice

Product Introduction
Platimax D. F. is the successor of the award winning Platimax series. The 80Plus Platinum certified PSU series is equipped with the patented DFR ™ (Dust Free Rotation) technology, preventing dust accumulation and granting a cleaner and long lasting PSU. All models have a semi-fanless function and a 139mm Twister Bearing fan, keeping the noise level to a minimum. The fully-modular PSU comes with individually sleeved cables (SLEEMAX™) offering further protection and the highest flexibility for system installation. This high-end PSU is the perfect solution for gaming systems and graphic workstations.

Dust Free Rotation™ Technology
DFR™ (Dust Free Rotation) technology
The patented technology DFR ™ allows the fan to remove automatically the dust from the fan blades.
After starting the PSU, the fan spins in reverse at full speed removing all the dust.
After that it will shift back to the normal operation mode.
D.F. Switch
Allows to manually activate the DFR™ mode of the fan within operation.

Efficiency
80 PLUS® Platinum
Up to 93% efficiency at 230VAC between 20 and 100% load. The Platimax D.F. series is 80 PLUS® Platinum certified.
Support of EU Eco-Design Regulations
Platimax D.F. helps systems to meet the EU eco-design directive ErP Lot 6 2013 and ErP Lot 3 2014 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry as well as the EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.
* only in combination with an ErP Lot 6 2013 ready mainboard

Cooling
Semi-Fanless Operation
Thanks to the smart semi-fanless control Platimax D.F. series operates completely silent up to 40% (30% for 1050/1200W) of system load.
Air Cooling by Enermax
The integrated 13.9cm fan with patented Twister Bearing™ technology ensures an efficient and continuously silent cooling and long lifetime.
Dust Free Rotation™ technology
The patented technology DFR™ technology allows the fan to remove automatically the dust from the fan blades. After starting the PSU, the fan spins in reverse at full speed removing all the dust. After that it will shift back to the normal operation mode.

Power
DC-to-DC Design
The secondary voltages (+5V and +3.3V) are generated by the primary voltage rail (+12V). Positive effect: Higher efficiency, clean output voltages (low ripple & noise) and a perfect voltage regulation at all loads.
Full Gaming Power
Six* 6+2P (8P) PCI-E connectors to power high-end graphics cards and multi-GPU systems (MGPU & SLI™).
*EPF750W four PCI-E connectors
Multi-Rail Design
Four 12V rails distribute the power with maximum stability and safety for high-end systems.

Connectivity
SLEEMAX™ Cables
New individual sleeved cables for comfortable cable management and higher safety.
Full-modular Cable Management
Cables can be completely removed in order to make the system installation and cable routing more comfortable and to improve the air circulation inside the case.
Enhanced Cable Management
CPU connector cable is extended to 70cm for easier cable management.
DXXII ready!
Full support of recent DX12 graphics cards due to minimum four* 6+2P (8P) PCI-E connectors.
*EPF850EWT, EPF1050EWT and EPF1200EWT come with 6x PCI-E connectors.

Compatibility
Intel® ATX12V v2.4
Compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.31 April 2013.
Intel® Kaby Lake™ Ready!
Full support of the C6/C7 energy-saving functions of Intel® processors, first introduced with the Haswell™ generation.

Worldwide Compatibility
Automatic 100-240V AC input for global usage and up to 99% active Power Factor Correction (PFC).

Quality & Safety

Durable & High-Quality Components
Enermax only uses high-quality components including first-class Japanese 105°C electrolytic capacitors for maximum stability and durability.
SafeGuard
The multiple protection circuit keeps the power supply and the system save from damage in case of short circuit (SCP), over voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), over power (OPP) as well as surges and inrush current (SIP).
24/7 @ 50°C
Non-Stop industrial class performance at 50°C ambient temperature.
5 Years Manufacturer Warranty

Dimensions
Dimensions (W x H x D)
EPF750EWT: 150mm x 86mm x 160mm
EPF850EWT: 150mm x 86mm x 160mm
EPF1050EWT: 150mm x 86mm x 160mm
EPF1200EWT: 150mm x 86mm x 160mm

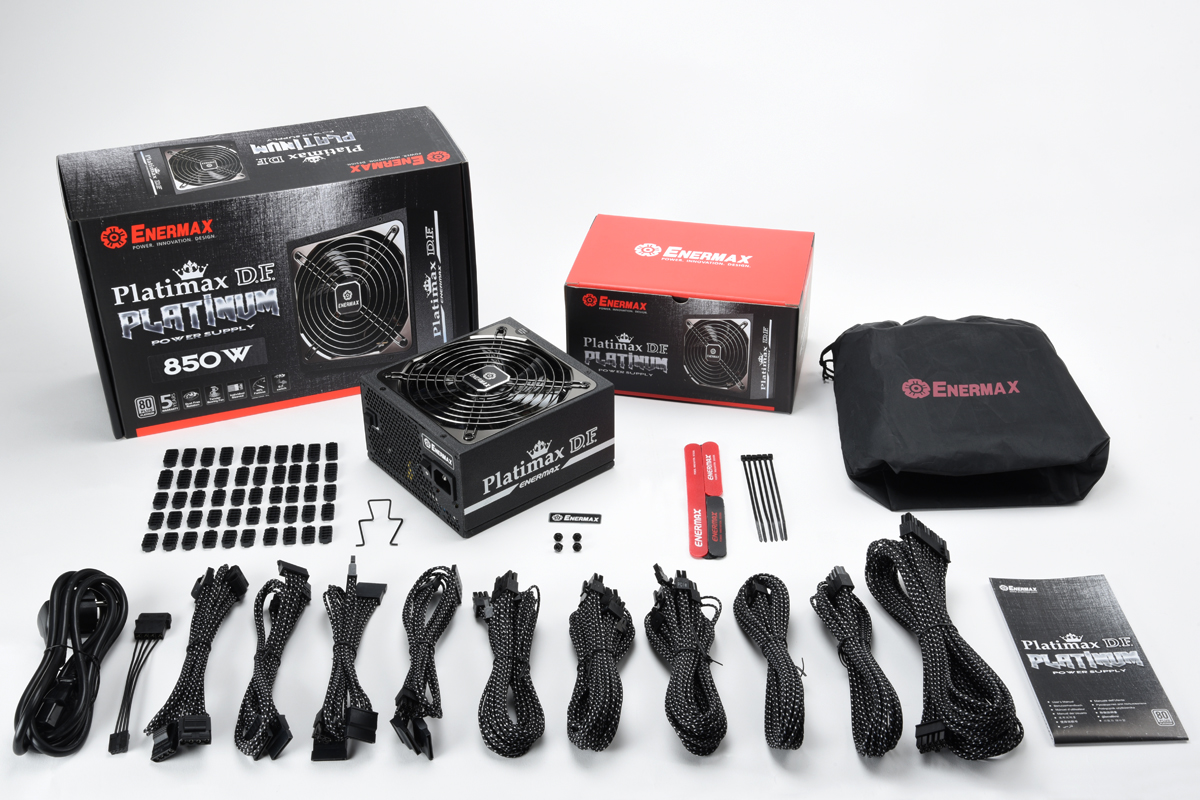

Accessory
Power Supply Platimax 750/850/1050/1200W
Modular Cables
Cable bag
4 screws
6 Cable Ties
Cord Organizer
User manual

Information for Dealers
Model                                                                 EPF750EWT                      EPF850EWT                    EPF1050EWT                   EPF1200EWT
Power Supply Dimensions (D x W x H)           160 x 150 x 86 mm      160 x 150 x 86 mm    160 x 150 x 86 mm   160 x 150 x 86 mm
Power Supply Weight                           1.85 kg                      1.85 kg                    1.85 kg                   1.85 kg
Product Box - Dimensions                           330 x 220 x 125 mm           330 x 220 x 125 mm    330 x 220 x 125 mm   330 x 220 x 125 mm
Product Box  - Gross Weight                           3.4 kg                      3.45 kg                    3.54 kg                   3.55 kg
Master Carton - Dimensions                           540 x 365 x 255 mm            540 x 365 x 255 mm   540 x 365 x 255 mm   540 x 365 x 255 mm
Master Carton - Gross Weight                           14.8 kg                       15 kg                   15.36 kg                   15.4 kg
Pieces / Master Carton                           4                                       4                                   4                                   4
EAN-Code                                                          4713157722874       4713157722881   4713157722898                   4713157722904
