Popis produktu:

Features & Benefits
-17.5”compact 4U chassis
-Anti-vibration design for all drive cages
-Add-on card holder supporting PCI&ISA card locations
-Rack and Tower convertable design
-Decidated 80mm fan for internal HDD cooling
rder Code

RM42300H-2FB
SKU1: 4U IPC Chassis,BK, w/120mm Fan, Tylersburg RM42300H-2FB
  ?1x 120mm Front PWM Fan, w/Filter
  ?1x 3x5.25"+1x3.5" exposed drive cage, w/Anti-vibration
  ?1x 2Pcs Type Front Door 86H341300-102
  ?1x Control Panel and Switch
  ?2x Front USB Ports, Cable, 750mm
  ?1x Intrusion switch Cable, 600mm
  ?1x Add-on Card Retainer (Support Low Profile)
  ?1x Single Packing Carton w/Chenbro logo

Description

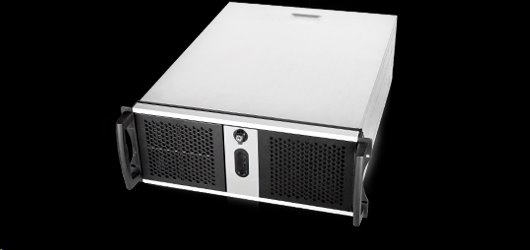

4U, 3 x 5.25" + 4 x 3.5" Hidden Drive bays, For Industrial Applications

M/B Form Factor

CEB (12"x10.5")

Processor

Intel / AMD UP Quad

Support Backplane

N/A

Security

Intrusion Switch
Front Bezel Key Lock

Chassis Dimension
D x W x H (mm) 445 x 430 x 176 (mm)
D x W x H (inch) 17.5" x 16.9" x 6.9"


Power Supply
Form Factor PS/2 or Mini-Redundant
Watt Option


Drive Bay
External 5.25" 3
External 3.5" 1
Internal 3.5" 4
Slim ODD 1

Generality
Metal Material SGCC
Metal Thickness 1.2 mm
Metal Material Type ABS-HB


Expansion Slots
FF 7


System Cooling
Front 80mmx 1(Option)
Rear 80mm x 2 (Option)


Rear Window

7 PCI slots

Slide Rail

Option

Front Panel
Front Control Power On/Off
System Reset
Indicator Power Status
HDD Activity (x1)
LAN Activity (x2)
Ports USB 2.0 (x2)



In Box Parts ListPart Category Qty. Description
Chassis 1 4U 17.5" chassis
Fans 1 120mm PWM, Front
Bracket 1 Add-on card retainer
Cables 1 2-Port USB, 750mm
1 Intrusion Switch, 400mm
Front Bezel 1 2Pcs Type, w/AL Plate
HDD Cage 1 3x5.25"+1x3.5", exposed

Optional Accessory
FansProduct Part. No# Description
84H000010-051 FAN, 80mm, 3P3C, Ball Bearing, L650mm


HDD CageProduct Part. No# Description
84H342310-003 DRIVE CAGE,3X5.25"+1X3.5", RM423/413


PSUProduct Part. No# Description
32H160007-001 600W, PS/2 Single, FSP600-80GLC
32H242002-002 420W, 1+1, MRW-6420P,FAN SPEED CONTROL, W/BRACKETS


Slide RailsProduct Part. No# Description
84H342310-001 20" Sliding Rail


OthersProduct Part. No# Description
66H243131-001 PCB, Slim ODD(SATA) TO M/B(SATA)
