Popis produktu:

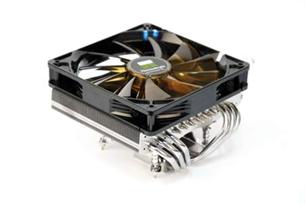

Low profile CPU cooler with down draft style of air cooling makes it perfect for HTPC; heasink total height is 70.2 mm.
Support intel Socket 775 / 1366 and 1156 AMD Socket AM2 / AM3
Down draft air flow helps to cool CPU surroundings such as MOSFET and North Bridge chipset producing a general reduction in temperature inside your computer case.
Large surface area for cooling (140mm x 140mm) with option to install a 120mm fan or a 140mm silent fan, balancing noise and performance to suit your preference.
Six nickel-plated heatpipes to reduce oxidation effect, maintaining top performance for long term usage.
Features an all copper base and soldering technology that has each heatsink fins soldered to the heatpipes for a definite contact in producing high efficiency rate of heat transfer.
Include 140mm 11 fins Large airflow fan (1500RPM).

Technical Spec

Heatsink:
Dimension: L145 x W147 x H70.2 mm
Weight: 550g (Heatsink only)
Heat pipes: Six heat pipes with Nickel plated
Heat sink base : copper

Fan:
Dimension: L140 x W140 x H25 mm
Bearing Type: two ball
Rated Speed: 1500RPM
Noise level: 33.5dBA
Air flow: 94.7CFM

Compatibility

CPU Compatibility:
Support Intel Socket 775 / 1366 & Socket 1156  AMD Socket AM2/AM3

Case Compatibility:
For any case that has at least 110mm of height clearance, you can choose to install AXP-140. 80% of HTPC cases in current market are within the compatible range. Only under special circumstances where the case manufacturers incorporate ventilation system would hinders AXP-140 from being installed properly.
