Popis produktu:

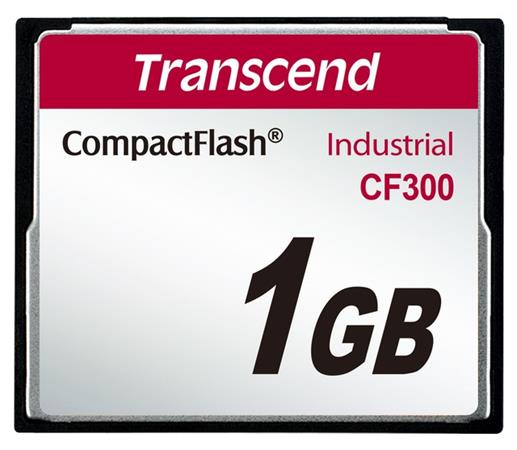

Transcend 1GB INDUSTRIAL CF300 CF CARD, high speed 300X paměťová karta (SLC)

CF300 CF Card

Transcend's CF300 cards are high-speed industrial CF cards offering impressive 300X transfer rates. With ultimate performance and durability, the CF300 CF cards are perfect for POS and embedded systems that require both industrial reliability and ultra high speed data transfer.

Features
RoHS compliant products
CompactFlash Specification Version 4.1 Compliant
Support S.M.A.R.T (Self-defined)
Support Security Command
Support Wear-Leveling to extend product life
Operation Modes: PC Card Memory, PC Card IO, True IDE
True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6
True IDE mode: Fixed Disk (Standard)
PC Card Mode supports up to Ultra DMA Mode 5
PC Card Mode: Removable Disk (Standard)
Built-in ECC (Error Correction Code) functionality and wear-leveling algorithm ensures highly reliable of data transfer
Power Shield prevents data loss in the event of a sudden power outage (optional feature)

Specifications:
Interface (connector): Compact Flash, 50P
Form Factor: Compact Flash Card
Flash Type: SLC
Capacity(GB): 1GB
Max. R/W Performance (MB/s) (Vary by density):
- Read: 57MB/s
- Write: 38MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W): 0.76W
Op. Temp.(C): - 25C~85C
Storage Temp.(C): - 40?~85?
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)
Dimensions(mm): 42.8mm × 36.4mm × 3.3mm
MTBF(hours): 1,000,000 hours
