Popis produktu:

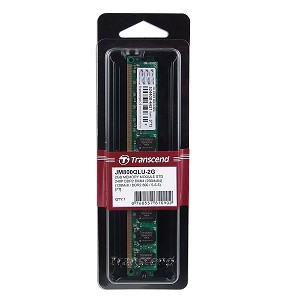

Transcend paměť 2GB DDR2 800MHz U-DIMM (JetRam) CL5 2Rx8

Doživotní záruka

The JM800QLU-2G is a 256M x 64bits DDR2-800 Unbuffered DIMM. The JM800QLU-2G consists of 16pcs 128Mx8bits DDR2 SDRAMs in FBGA packages and a 2048 bits serial EEPROM on a 240-pin printed circuit board. The JM800QLU-2G is a Dual In-Line Memory Module and is intended for mounting into 240-pin edge connector sockets.

Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.

Features
• RoHS compliant products.
• JEDEC standard 1.8V ± 0.1V Power supply
• VDDQ=1.8V ± 0.1V
• Posted CAS
• Programmable CAS Latency: 4, 5, 6
• Programmable Additive Latency :0, 1, 2, 3, 4, 5
• Write Latency (WL) = Read Latency (RL)-1
• Burst Length: 4, 8(Interleave/nibble sequential)
PCB: 09-2980
• Programmable sequential / Interleave Burst Mode
• Bi-directional Differential Data-Strobe (Single-ended
data-strobe is an optional feature)
• Off-Chip Driver (OCD) Impedance Adjustment
• MRS cycle with address key programs.
• On Die Termination
• Refresh: Auto Refresh and Self Refresh
Average Refresh Period:
7.8us at lower then T 85°C CASE
• Serial presence detect with EEPROM

2Rx8
128Mx8
CL5
1,8V
