Popis produktu:

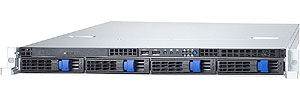

Specifications System Form Factor 1U Rackmount
Chassis Model GT24
Dimension (D x W x H) 25.4" x 17.2" x 1.72" (645 x 436 x 43.6mm)
Motherboard S3992G3NR-E
Board Dimension EATX, 12"x13" (305x330mm)
Gross Weight 18 kg
Front Panel Buttons (1) PWR / (1) RST / (1) NMI / (1) ID
LEDs (1) PWR / (1) HDD / (2) LAN / (1) ID / (1) Warning
I/O Ports (2) USB ports
External Drive Bay Type / Q'ty 3.5" Hot-Swap / (4)
Supported HDD Interface SATA 1.5Gb/s
System Cooling Configuration FAN (3) 4cm fans
Peripherals Type of ODD / Q'ty Slim-type DVD-ROM / (1)
Power Supply Type EPS12V
Efficiency PFC
Input Range Full-range AC(100-240V)
Frequency 60 Hertz
Output Watts 500 Watts
Processor Supported CPU Series AMD 45nm Quad-Core Opteron 2300/2400 Series Processors (Shanghai / Istanbul) / Support AMD Dual Dynamic Power Management (DDPM) feature / Support AMD HyperTransport (HT1 and HT3) Technology
Socket Type / Q'ty LGA 1207-pin / (2)
Thermal Design Power (TDP) wattage Max up to 95W
System Bus Up to 4.4 GT/s Hyper-Transport link support
Chipset Chipset Broadcom HT2000 / HT1000
Memory Supported DIMM Qty (16) DIMM slots
DIMM Type / Speed Registered ECC DDR2 / 667/533/400
Capacity Up to 128GB
Memory channel 2 Channels per CPU
Memory voltage 1.5V
Note: Support up to 64GB Registered ECC DDR2 800 memory (4 DIMMs per CPU)
Expansion Slots PCI-E (1) PCI-E x16 slot (w/ x8 link)
Pre-install TYAN Riser Card M2083-RS, PCI-E x16 1U riser card (left)
LAN Port Q'ty (3)
Controller Broadcom HT-2000
PHY Intel 82551QM
Graphic Connector type D-Sub 15-pin
Resolution 1600x1200
Chipset ATI ES1000
Video RAM 32MB
I/O Ports USB (4) ports (2 at front, 2 at rear)
COM (1) DB-9 COM port
PS/2 (1) PS/2 connector (for Keyboard and Mouse)
VGA (1) D-Sub 15-pin port
RJ-45 (2) GbE + (1) FE ports
SO-DIMM (1) 200-pin slot
System Monitoring Chipset (2) EMC6D103
Voltage Monitors voltage for CPU, memory, chipset & power supply
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning indicator
Others Chassis intrusion detection / Watchdog timer support
Server Management Optional SMDC M3291 IPMI 2.0 remote system management card
M3291 Feature Renesas H8S2167 Baseboard Management Controller (BMC) / Supports remote power on/off and reset (IPMI over LAN) / Shared management NIC / Properitary card interface (2 x 25pin header) / SOL (remote serial console redirect over LAN)
BIOS Brand / ROM size AMI / 1MB
Feature Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Multiple boot options
Operating System OS supported list Please refer to our OS supported list.
Regulation FCC (DoC) Class A
CE (DoC) Yes
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Package Contains Barebone (1) GT24B3992-E Barebone
Manual (1) MB User's manual + (1) BB User's manual
Installation CD (1) TYAN installation CD
Heatsink / Cooler (1) CHSK-0050, AMD 1207-pin CPU heatsink / (1) CHSK-0052, AMD 1207-pin CPU heatsink
Rail kit (1) CRAL-0031, sliding rail kit for KGT24/ KGT62
Mounting Ear (1) CEAR-0050, mounting ear kit for GT20/ GT24
Others (1) HDD screw pack
Cable Power Cord (1) CCBL-0310, US type power cord / (1) CCBL-0300, EU type power cord
Optional accessories SMDC IPMI Card M3291
Riser Card M2061, PCI-E x8 to PCI-X 1U riser card (left)
Taro Card M9000, SAS/SATAII "TARO" card
