Technical Specifications
Overview

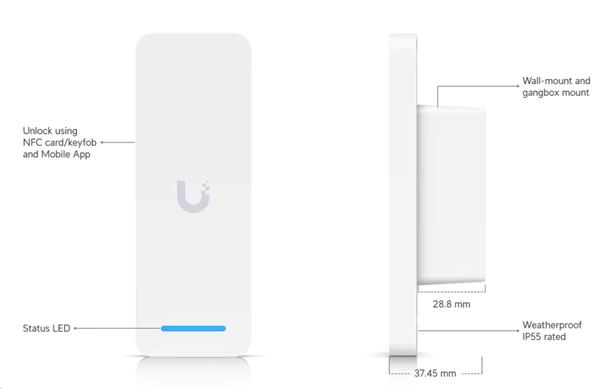

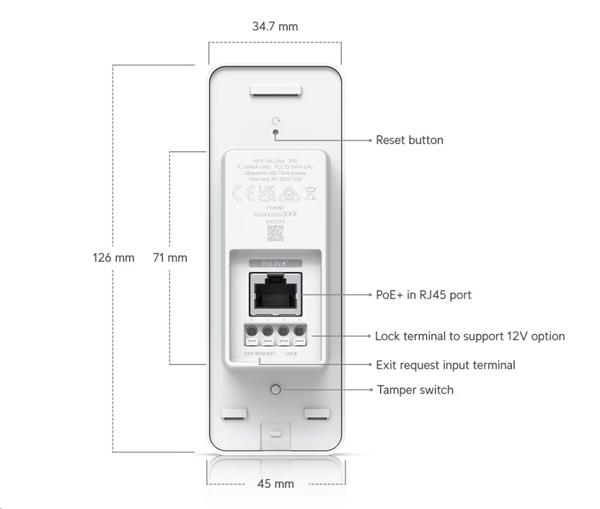

Dimensions
126 x 45 x 37.45 mm
(4.9 x 1.8 x 4.5")
NFC Card & Keyfob Access
Yes
Mobile Unlock
Yes
Maximum User Count
3,000
NDAA Compliant
Yes
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Tamper Switch
Yes
Weatherproofing
IP55
Mechanical
Weight
140 g (4.9 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Stainless steel

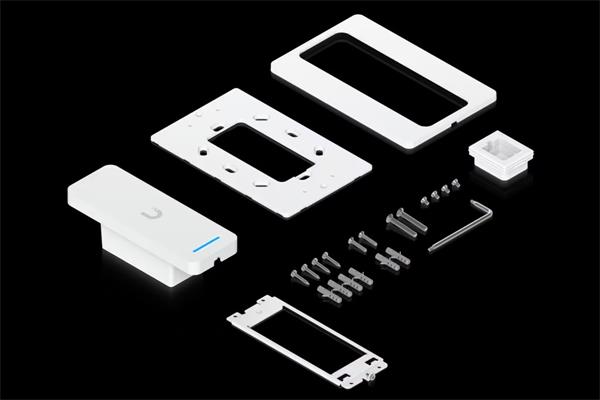

Mounting
Wall mount, gang box mount (Included)
Junction box (Optional)
Hardware
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
-30 to 40° C
(-22 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.2
Ethernet
Power Method
PoE+
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
18W
Supported Voltage Range
44—57V DC
ESD/EMP Protection
Air: ±8kV, contact: ± 4kV
Powered Output Relay
Lock: 12V DC, 1A
Speaker
Yes
LEDs
R/G/B/W Learn More
Button
(1) Factory-reset
NFC Frequency
13.56 Mhz
NFC Read Range
< 50 mm (1.95'')
NFC Technology
ISO 14443A, 14443B, 15693
NFC Tag 1,2,3,4,5
MIFARE Classic
MIFARE Plus
Mifare Ultralight
MIFARE DESFire
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Ultra, V01
Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
