Technical Specifications
Mechanical

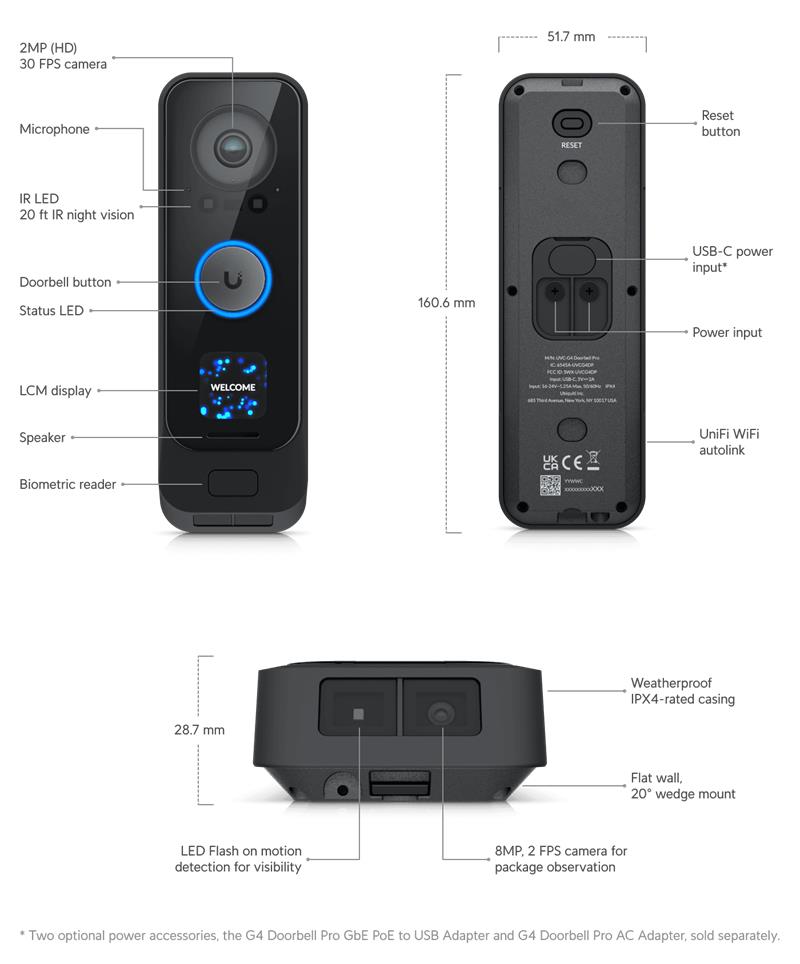

Dimensions 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")
Weight Without mount: 253 g (8.92 oz)
With flat wall mount: 286 g (10.08 oz)
With 20° wedge mount: 325 g (11.46 oz)
Enclosure materials Polycarbonate, aluminum alloy
Mount materials Flat wall mount: aluminum alloy
20° wedge mount: polycarbonate
Weatherproofing IPX4
Optics
Sensor Main camera: 5MP CMOS sensor
Package camera: 8MP CMOS sensor
Lens Fixed focal length
View angle Main camera: H: 138°, V: 114°, D: 155°
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode Built-in IR LED illumination and IR cut filter
Video
Video compression H.264
Resolution 1600 x 1200 (4:3)
Max. frame rate 30 FPS
System
Processor Quad-core Arm® Cortex®-A53 based chip
Networking interface 802.11a/b/g/n/ac WiFi
Bluetooth 5.0
GbE support (with UACC-Adapter-DBPOE)
Max. power consumption 10W
Power requirements 16—24V AC, 1.25A max., 50/60 Hz
USB-C power cable, 5V DC, 2A
Supported voltage range 37—57V DC
LED Link/activity
Button (1) Ring button
(1) Factory reset
Mounting Flat wall, 20° wedge (Included)
Operating temperature -10 to 40o C (14 to 104o F)
Operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Audio
Microphone Yes (Can be disabled in software)
Speaker Yes
Software
UniFi OS application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
Compatible Mechanical Chimes
Manufacturer
Broan-NuTone
Broan-NuTone
Heath Zenith
Craftmade
Broan-NuTone
Newhouse Hardware Model
LA126WH
LA11WH
SL-2735
CTPW-RG
LA39WH
CHM3D
Compatible Digital Chimes
Manufacturer
Broan-NuTone
IQ AMERICA
IQ AMERICA Model
LA600WH
DW-2850
