Display Specifications Size 10.1-inch IPS display with LED Backlight Resolution 1920 x 1200 WUXGA Brightness 800 nit With direct optical bonding for sunlight readable Touch Multi-touch projected capacitive Contrast Ratio 800:1 Viewing Angle 85/85/85/85 Technology • Ant- reflective and anti-glare technology (Optional) • Ambient light sensor, e-compass, gyro, acceleration sensors • Automatic screen rotation • Intel HD Graphics (built-in CPU) video controller System Specification Processor Intel Pentium N4200 Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology System Memory 4GB SODIMM DDR3L-1600 (up to 8GB) 1 Storage 64GB solid state drive (SSD) Optional up to 512GB, up to 128GB additional storage with optional microSDXC card slot Operating System Windows 10 IoT Enterprise (64 bit) Wireless Communication WLAN 802.11 a/b/g/n/ac Bluetooth Bluetooth 4.2 GNSS GPS, GLONASS, BeiDou WWAN • Optional 4G (LTE, HSPA+, GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT) • Optional 3G (HSPA+, GSM/GPRS/EDGE) Interface Docking Connector 1 x 19-pin docking connector HDMI 1 x Optional micro HDMI USB 1 x USB3.0 (Type A), 1 x USB3.0 (Type C) Power Input 1 x Power Jack Micro SD 1 x Micro SD Slot Audio Connector 1 x Audio Combo connector (Mic in or Line Out) Keyboard and Input Touch • 10-point multi touch, support Rain, Glove, Stylus Button • On-screen QWERTY keyboard Button 1 x power, 1 x Home, 2 x volume key, 2 x function key (Programmable function key configured by Hottab Utility) LED Indicators Power, Battery, HDD, RF Audio Microphone Built-in dual Digital Mic with Noise Cancellation Speaker 2 x 1 watt speaker Cameras Web Camera 2MP webcam Rear Camera 8MP rear camera with autofocus and LED light Data Capture Barcode Optional 1D/2D Barcode Reader HF RFID Optional HF RFID reader 13.56 MHz Security Function Security • Password security for user and hard disk lock • Trusted Platform Module (TPM) 2.0 Mobile Device Mgmt. SOTI Mobicontrol compatible Mechanical and Environment Dimension (W x L x H) 271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches) 4 Weight 1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery Operating Temperature -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) Storage Temperature -30°C to 70°C (-22°F to 158°F) Humidity 10% to 90% RH, non-condensing IP Proof IP65 certified, Dustproof and waterproof Shock MIL-STD-810G Method 516.6 Procedure I Vibration MIL-STD-810G Method 514.6 Procedure I Drop MIL-STD-810G Method 516.6, 4 ft to concrete Power Management Power Input 12-19V DC Battery 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P) 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional) Battery Operating Time Std. Battery: 8 hours High Capacity Battery: 16 hours Adapter 100-240V, 50-60Hz / 19V DC Product Specification Operating system: Windows 10 IoT Enterprise Windows Embedded 8.1 Industry Pro Windows Embedded Standard 7 Windows 7 Pro for Embedded Systems

Příslušenství (součást balení) • Adapter and Power Cord • Capacitive Stylus • Standard Battery

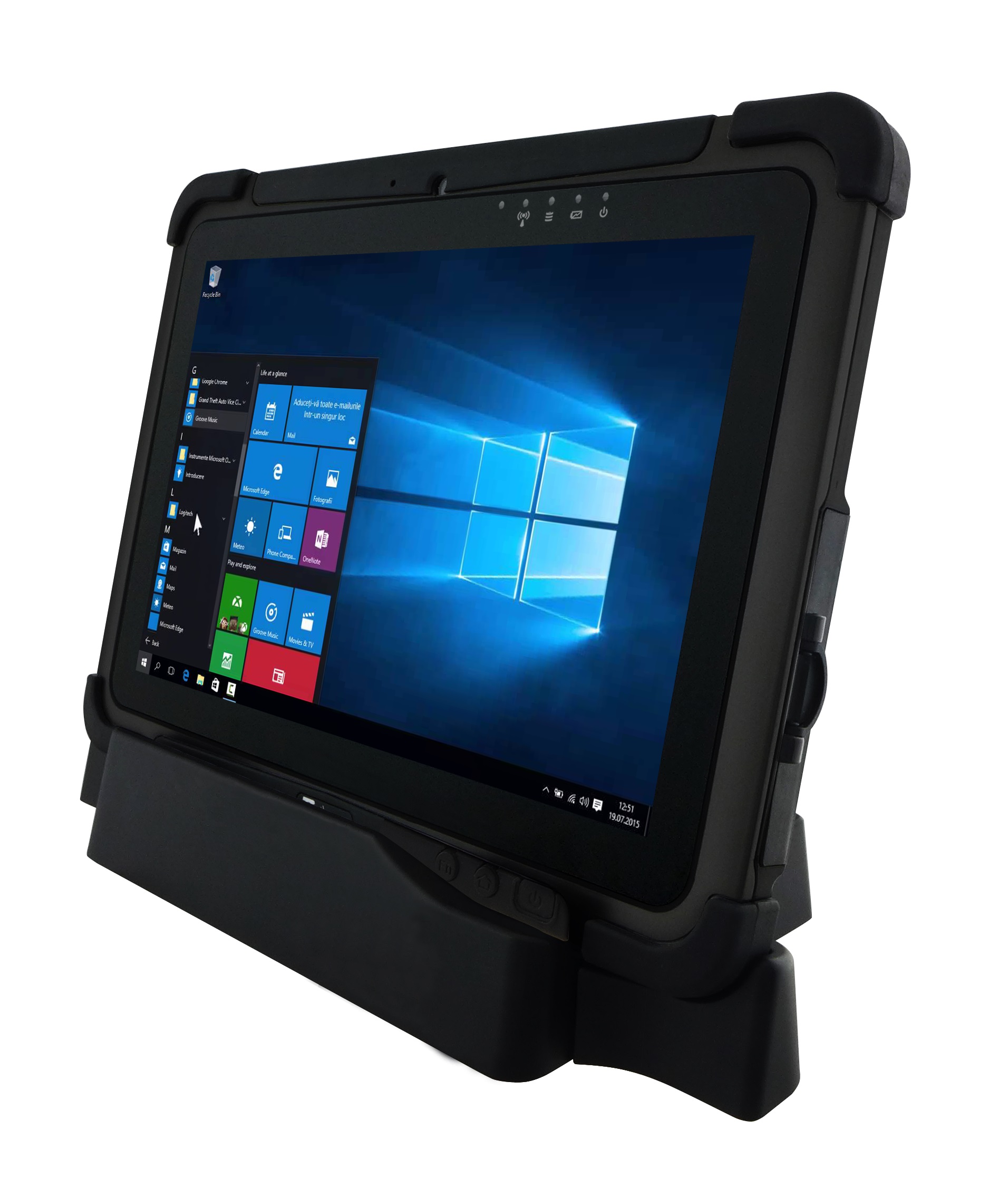

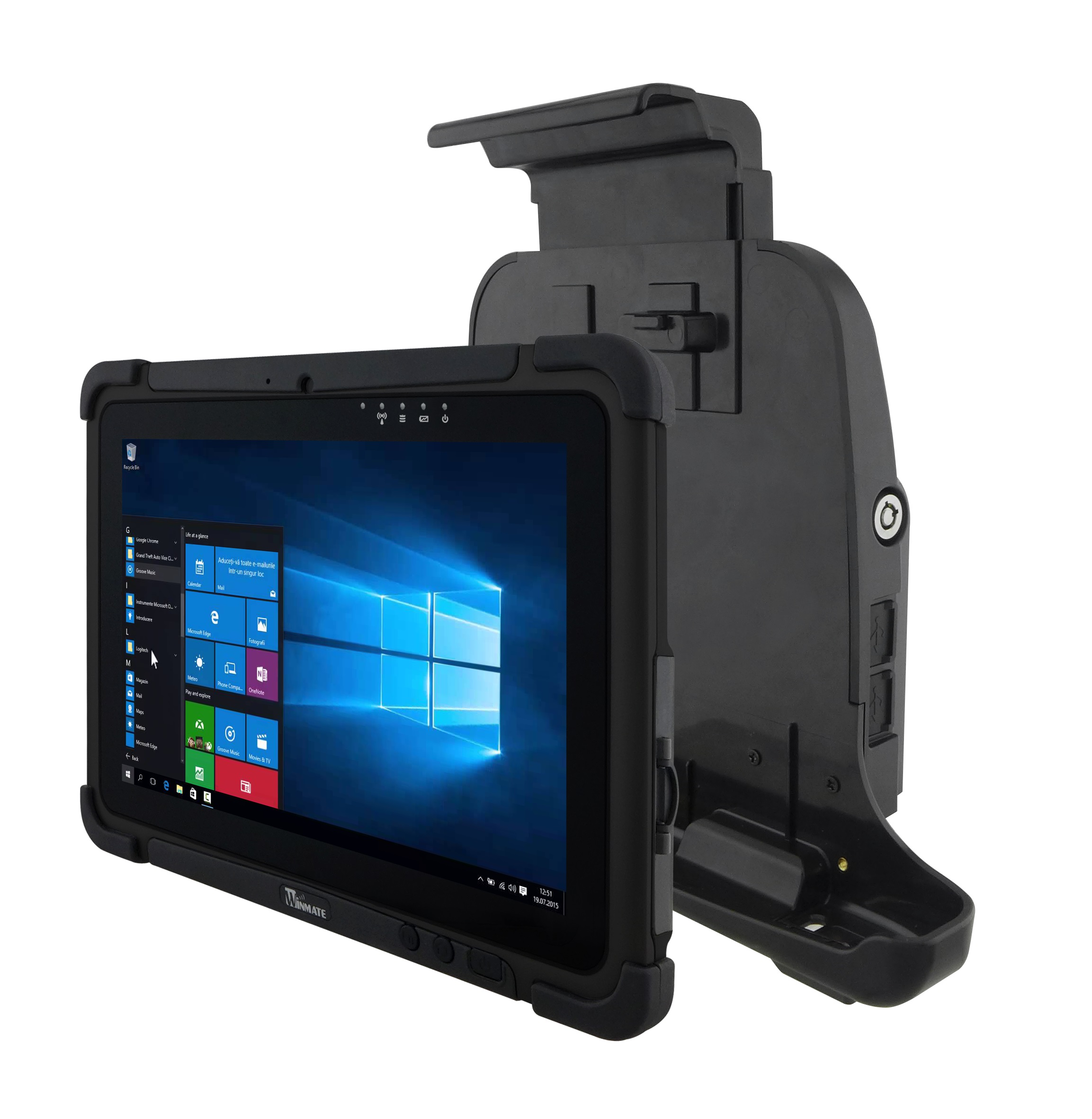

Volitelné příslušenství (lze dokoupit samostatně) • Desk Dock • Vehicle Dock (without VGA output) • Battery Charger • Active Pen • Smart Card Reader • High Capacity Battery • Hand Strap • UHF RFID Reader • VESA Mount Kit • Shoulder Strap • Carry Bag • Micro HDMI Cable • Vehicle Charger • Mobile Printer MX20 • Mobile Printer MX30
