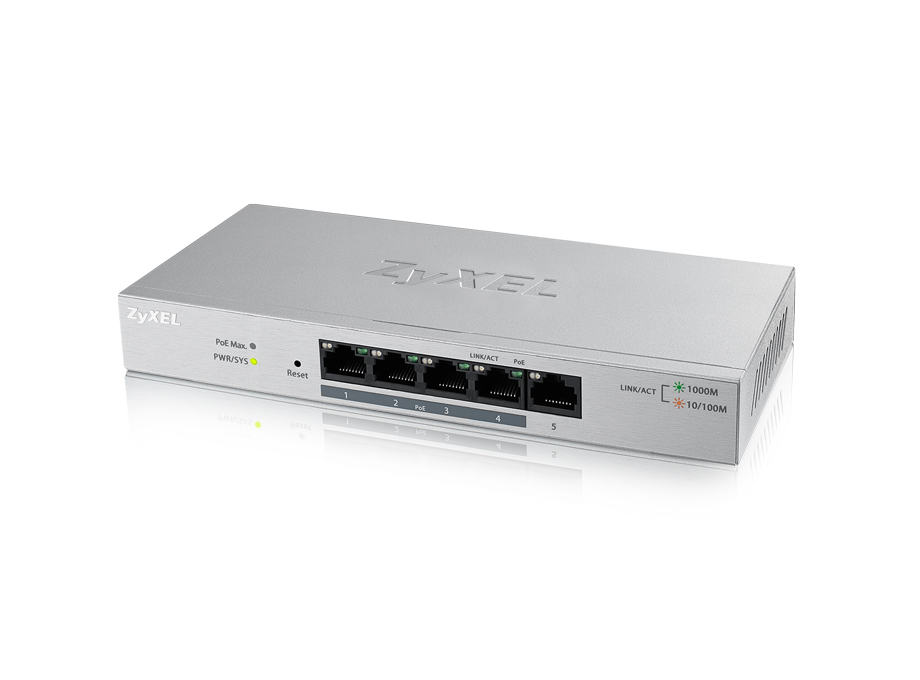

GS1200-5HP-EU0101F5-port Desktop Gigabit Web Smart switch: 5x Gigabit metal, 4x PoE (802.3at, 30W), PoE Power budget 60W, IPv6, 802.3az (Green), Easy set up wizard, fanless OVERVIEW Smart features The ZyXEL GS1200 series Web Managed PoE Gigabit Switch provides simple control for better manageability. Unlike other advanced but complex managed switches, the ZyXEL GS1200 series is suitable for most users and provides an affordable solution with fundamental features including PoE, VLAN, QoS, IGMP snooping v1/v2 and v3 compatibility. PoE support The ZyXEL GS1200-5HP and GS1200-8HP deliver PoE capabilities of IEEE 802.3at (30 watts/per port with total PoE power budget 60 watts) to supply power to PoE-capable network devices such as wireless APs, IP cameras and IP phones. Web GUI management enables you to monitor power status of each port and/or to reboot the network devices. Easy Configuration The ZyXEL GS1200 series does not require any additional software. It is more visualized with an easy, friendly and intuitive Web GUI that helps configuration tasks to be completed in just simple clicks. It is much easier for small office users. Energy Saving For IEEE 802.3az The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffics and adjusts power consumptions dynamically to reduce power consumption during the low link utilization periods. TECHNICAL SPECS Model GS1200-5HP *5-port GbE Web Managed PoE Switch Chipset Main chip *GS1200-5HP : Broadcom BCM53125 CPU *IC Plus IP210W Port Density Total port count *GS1200-5HP : 5 1000BASE-T *GS1200-5HP : 1 1000BASE-T PoE *4 Performance Switching capacity *GS1200-5HP : 10 Gbps Packet buffer *GS1200-5HP : 128 KB MAC address *4K Jumbo frame *9 KB LED Power *Yes Per port *Yes PoE power status *Yes (Max) Power Input voltage *55 V/1.3 A Power supply *External Maximum power consumption (watt) *72 PoE power budget (watt) *60 Physical Specifications Dimensions (WxDxH) (mm) *GS1200-5HP : 193 x 84 x 26 Weight (kg) *GS1200-5HP : 0.4 Environmental Specifications Operating temperature *0°C to 40°C Operating humidity *10% to 90% (non-condensing) Storage temperature *-40°C to 70°C Storage temperature *10% to 90% (non-condensing) Standard Compliance IEEE 802.3u 100BASE-TX Ethernet *Yes IEEE 802.3ab 1000BASE-T Ethernet *Yes IEEE 802.3az EEE support *Yes IEEE 802.3x flow control *Yes IEEE 802.3z 1000BASE-X *Yes IEEE 802.1p CoS *Yes IEEE 802.3af PoE *Yes IEEE 802.3at PoE Plus *Yes (30W per port) Auto MDI/MDI-X *Yes IEEE802.1Q VLAN tagging *Yes Features Web-based management *Yes System password *Yes Port-based VLAN *Yes VLAN (# Supported) *GS1200-5HP : 5 Port-based QoS *Yes 802.1p CoS *Yes Broadcast storm control *Yes Loop detection *GS1200-5HP : - Weighted Round Robin (WRR) priority QoS *Yes IGMP snooping v1/v2/and v3 compatible *Yes Supported multicast groups *20 Firmware update *Yes Certification EMC *CE, FCC, C-Tick, Class A : Yes Safety *LVD EN60950-1 : Yes *RoHS compliant : Yes
