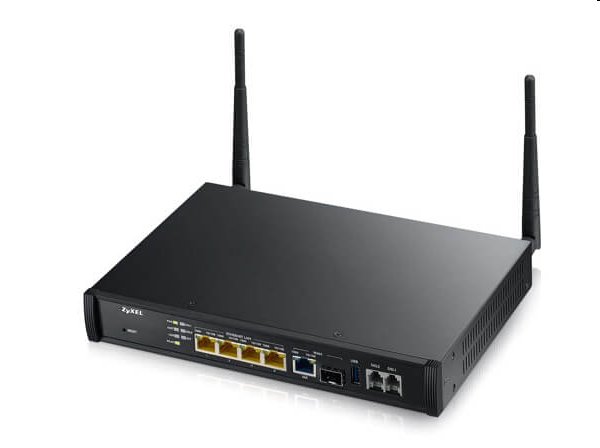

Small Business Gateway, VDSL2, 1x GbE WAN (RJ45/SFP) 4x GbE LAN, 1x USB 2.0, 802.11n 2x2 300Mbps, Wireless Controller up to 8 APs (2 in default, NWA3000-N/5000 series), 20 concurrent VPN (IPSec/L2TP/PPTP) tunnels, ACL rules, SPI firewall, DDoS prevention OVERVIEW · Multiple WAN interface support for various connectivity options · Supports VDSL bonding to expand bandwidth for fixed-lines · 802.11n technology for extreme performance · VPN, Firewall and URL/key word filtering provide solid data security · 3G/4G USB devices supported for mobile broadband back-up SPECIFICATIONS SYSTEM SPECIFICATIONS High Availability WAN · 3 WAN interface (VDSL, Ethernet/SFP) options · User configurable multi-WAN load balancing with one WAN for failover/fallback VDSL Compliance · G.993.1 VDSL, G.993.2 VDSL2 Annex A compliant, band plan 997, 998 · G.994.1 (G.hs) Handshake, G.997.1 · Support VDSL profiles up to 17a · Packet Transfer Mode (PTM) 17a bonding · Rate adaption · Seamless Rate Adaption (SRA) · INP: Up to 16 symbols · G.INP, G.Vector · PhyR configurable ADSL Compliance · G.992.1 (G.dmt), G.992.2 (G.lite) Annex A compliant · G.992.3 (ADSL2), G.992.5 (ADSL2+) Annex A compliant · Reach-Extended ADSL (RE ADSL) · Seamless Rate Adaptation (SRA) · PPP over ATM AAL5 (RFC2364) · Support VC-based and LLC-based multiplexing · ATM traffic shaping (CBR, VBR-rt/nrt, UBR) · PhyR configurable Ethernet/SFP WAN · 1 x GbE RJ-45 port · 1 GbE SFP port · Ethernet WAN and SFP dual personality Ethernet LAN · 4 x GbE RJ-45 ports · N-way, automatic speed negotiation supported · Auto-sensing, auto-detection MDI/MDIX Bridge/Router · Dynamic learning for up to 2014 MAC address · PPPoE, PPPoA, IPoE, IPoA (RFC 1483) · DHCP client/server/relay · DHCP option 43/60/61/66/121/125/150 · DNS proxy, DDNS · RIP I/RIP II supported · Adjustable MTU size · QoS classification route, queuing and scheduling · Interface grouping · IPv6 support VPN · Simple wizard support (Express wizard) · Concurrent 20 IPSec VPN tunnels · IPSec, PPTP and L2TP over IPSec VPN · IPSec HW engine · Algorithm: AES (128/192/256)/3DES/DES · Authentication: SHA-1/MD5 · Auto reconnect VPN · VPN failover/fallback Firewall & Security · Full cone NAT/Symmetric NAT/Restrict Cone NAT, NAT ALGs · 20,000 NAT sessions supported · Configurable DMZ · PPTP/IPSec/L2TP pass through · PAP/CHAP/MS-CHAP v1 and v2 · Stateful packet inspection · DoS/DDoS protection · Access control: up to 256 ACL rules · Directional ACL rule support USB · 1 x USB 1.1/2.0 port · FTP file sharing · Supported file system: FAT16/32, EXT2/3 · Support mobile broadband dongle · 3G budget control Wi-Fi* · IEEE 802.11n compliance, backward compatible with 802.11 b/g · Dynamic auto channel selection · WMM support (SSID-based WMM configuration) · WPS on/off configuration in Web GUI · Multiple number of SSID: Up to 4 · Per-SSID VLAN binding · WEP data encryption 64/128bit · WPA/WPA-PSK with TKIP & AES security type · WPA2/WPA2-PSK with TKIP & AES security type · IEEE 802.1x (EAP-MD5, TLS and TTLS) · 32 MAC filter · Client connection: A maximum of 32 clients simultaneously connect to the AP · Adjustable WLAN output power (via CLI, XML) · Web-based authentication * WLAN management supported in Q3 2014 Management · Two-tier log in · Login privilege · Dual image firmware protection · Text based configuration (XML based) · Support TR-069, TR-098, and TR-111 · SNMP v1, v2c · Rom-D support · Syslog · User management (user data base/profile) Hardware Specifications · WAN interface: 2 x RJ-11 connectors for VDSL2/ADSL2+ over POTS · 1 x RJ-45 port for Gigabit Ethernet/SFP interface for connection to Fiber (dual personality) · LAN interface: 4 x 10/100/1000M Auto MDI/MDIX RJ-45 ports · USB: One type A, 2.0 host USB · WLAN on/off button · RS232 console port · LED indicators: DSL1, DSL2, Ethernet WAN/Ethernet LAN (LED on connectors), power, internet, USB, SFP, WLAN · Power input: 12 V DC, 2 A Physical Specifications · Item dimensions (WxDxH): 242 x 170 x 36 mm · Item weight: 1.19 kg · Packing dimensions (WxDxH): 343 x 209 x 75 mm) · Packing weight: 1.93 kg ENVIRONMENTAL SPECIFICATIONS Operating Environment · Temperature: 0°C to 40°C · Humidity: 10% to 95% (Non-condensing) Storage Environment · Temperature: -30°C to 70°C · Humidity: 10% to 95% (Non-condensing) · MTBF (hrs): 300,000 Certification · CE: EN60950-1
